Installing a Windchill Extension

Introduction

The extension can be installed without starting or stopping the server, however the Windchill Extensions Platform needs to be installed on your server. If you do not have the platform install please follow this guide


Installation

  • Download the extension from the Wex Center

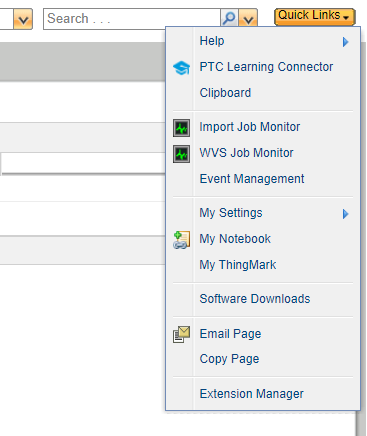

  • Access you Windchill and go to Site, Extension Manager or via the Quick Links
  • User must be site admin or member of WexAdmin group
  • Click on the green plus, Install Extension
  • Choose the extension file you downloaded
  • Click Next, accept terms of license and click Finish

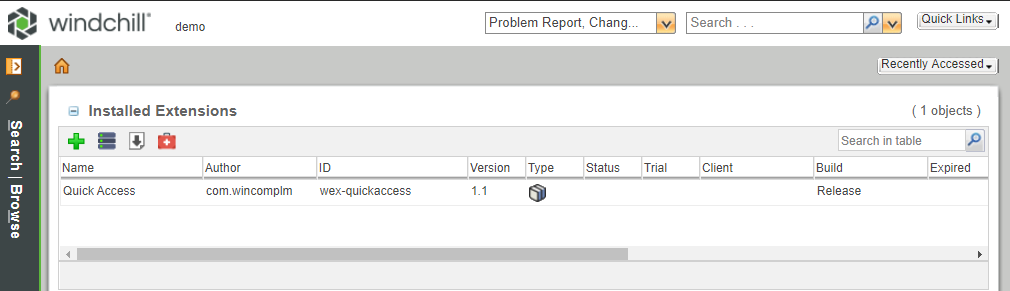

  • Confirm the extension is on the list of the installed extensions
  • No further action needed
  • No restart required

file

file

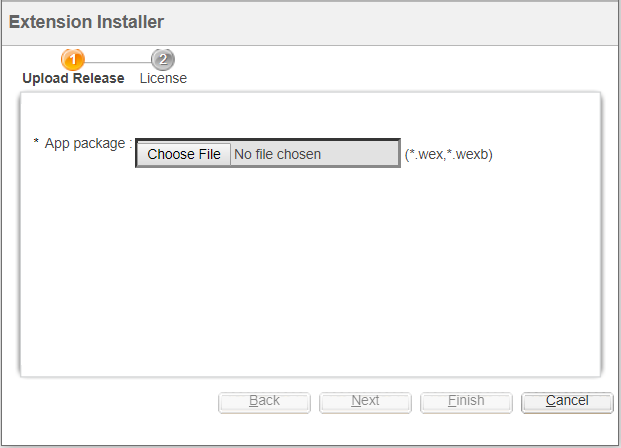

The file to install does not need to be present on the server and will be uploaded. It may be a .wex or a .wexb extension

file

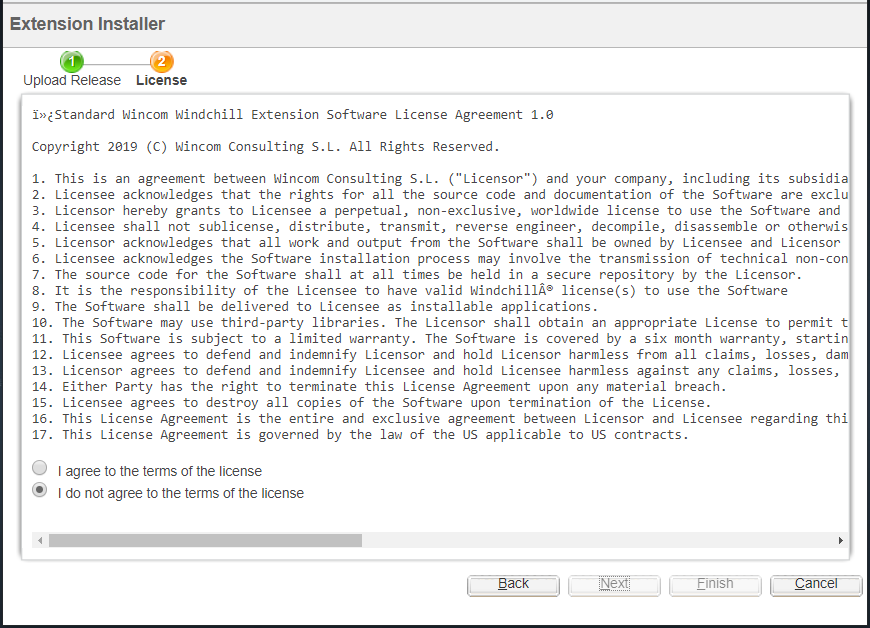

The wizard to install will require the user to accept the license terms

file


Installation via Command Line

Use the following command

windchill com.wincomplm.wex.kernel.commands.WexCommandLineExecutor -u wcadmin -p wcadmin -pid com.wincomplm.wex-deploy -cid deployfile -a -file pathtofile

Installation via Extension Shell

An extension or many extensions can be installed using the command line

Place the .wexb file or files in this location

 WT_HOME/wex/deploy

Then start the shell

From there run the deploy command

dp

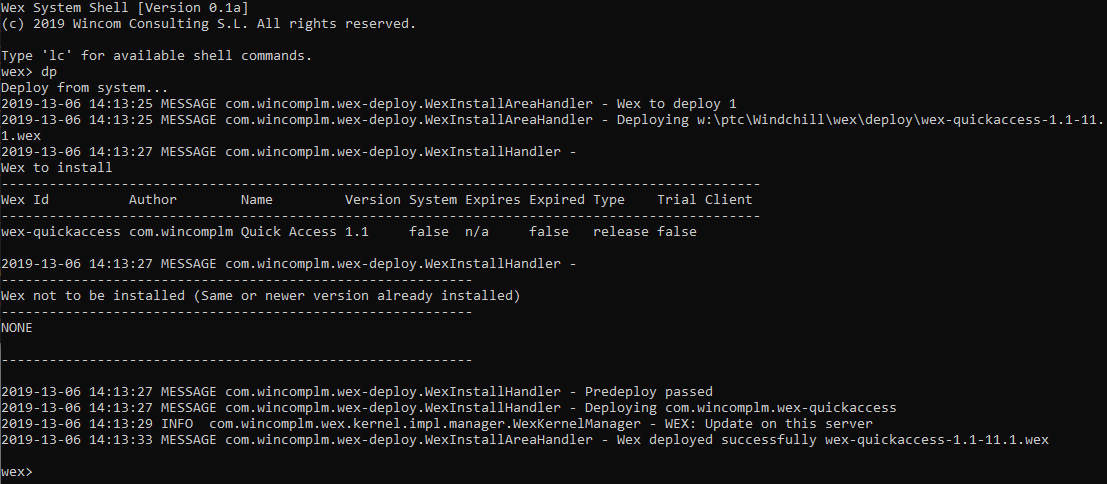

Example

file


Granting extension manager rights

Typically a site admin is allowed to deploy and undeploy extensions however by creating a group called

WexAdmin

Users can be add to this group and will have right for all actions in the extension manager.


Trouble shooting

Open folders

The O/S must not hold open any folder under the /wex area.

Corrupt xconf files

The xconf files must be correct and contain no syntax errors.

Run this command to check the consistency of the files:

xconfmanager -p
