Watermark Templates Configuration

Overview

The article presents all currently available templates together with the possibilities to configure it and their default values. *In order to overwrite the default value, replace it with a customized one.


Basic Templates


  • state


All values for basic templates are static.


Advanced Templates


statefooter


NOTE: Statefooter has static watermark size.

There are 2 keys that can be customized selecting this template on the Configuration Manager:

file

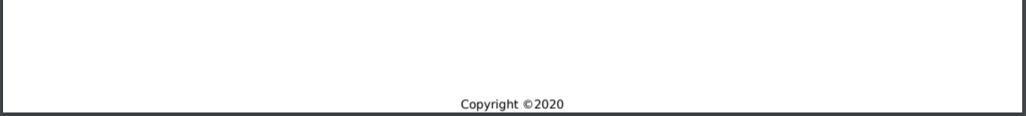

  • footer: it is located on the bottom center side of the document.

file

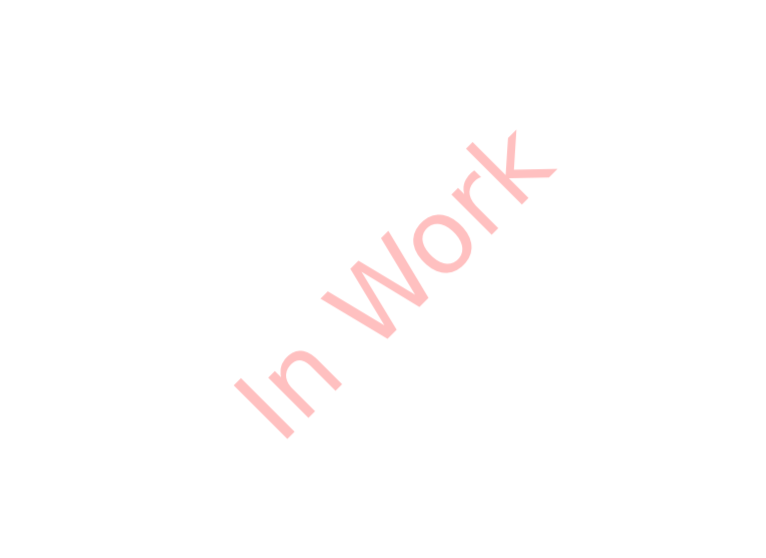

  • statedisplay: it is located on the center of the document.

file


The color and opacity of the different keys can be customized. See the default values below:

Key Default Value
splashcolor #ff0000
splashopacity 0.25
footercolor #000000
footeropacity 1



splashfooterheader

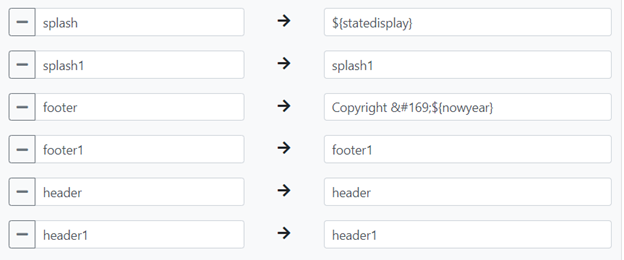

There are 6 keys that can be customized selecting this template on the Configuration Manager:

file

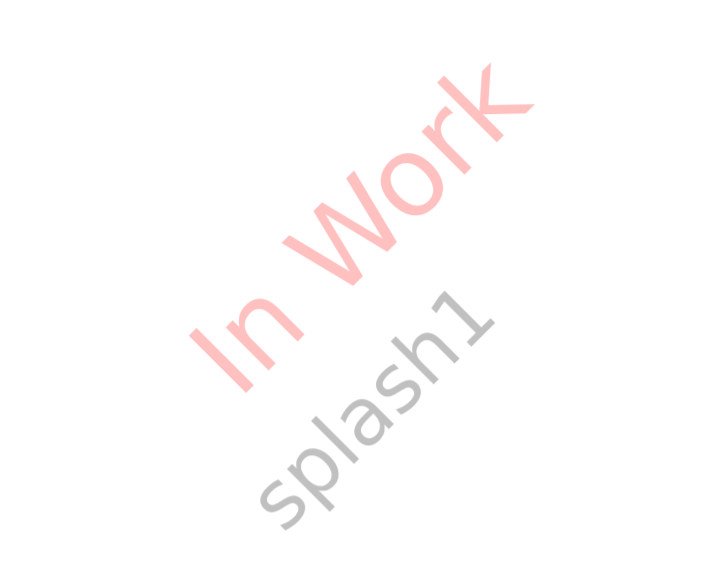

  • splash: it is located on the center of the document.
  • splash1: it is located on the center of the document, under splash watermark.

file

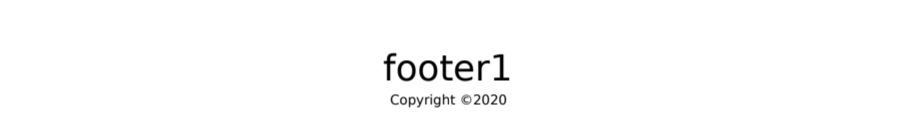

  • footer: it is located on the bottom center of the document.
  • footer1: it is located on the bottom center of the document, above footer.

file


  • header: it is located on the top center of the document.
  • header1: it is located on the top center of the document, under header.

file

The color, size and opacity of the different keys can be customized. See the default values below:

Key Default Value
footer key:footer|color|size
footer1 key:footer1|color
header key:header|color|size
header1 key:header1|color|size
splash key:splash|color|size
splash1 key:splash1|color|size
headercolor #000000
header1color #000000
splashcolor #ff0000
splash1color #000000
footercolor #000000
footer1color #000000
headersize 3px
header1size 8px
splashsize 25px
splash1size 18px
footersize 3px
footer1size 8px
headeropacity 1
header1opacity 1
splashopacity 0.25
splash1opacity 0.25
footeropacity 1
footer1opacity 1



splash2footer3header3

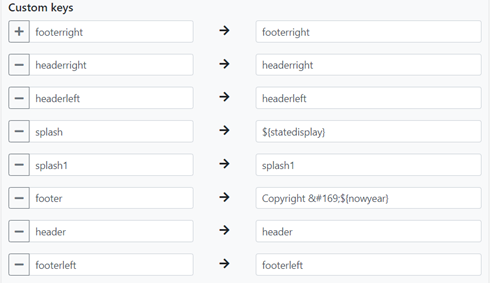

There are 8 keys that can be customized selecting this template on the Configuration Manager:

file


  • header: it is located on the top center of the document.
  • header left: it is located on the top left side of the document.
  • header right: it is located on the top right side of the document.

file

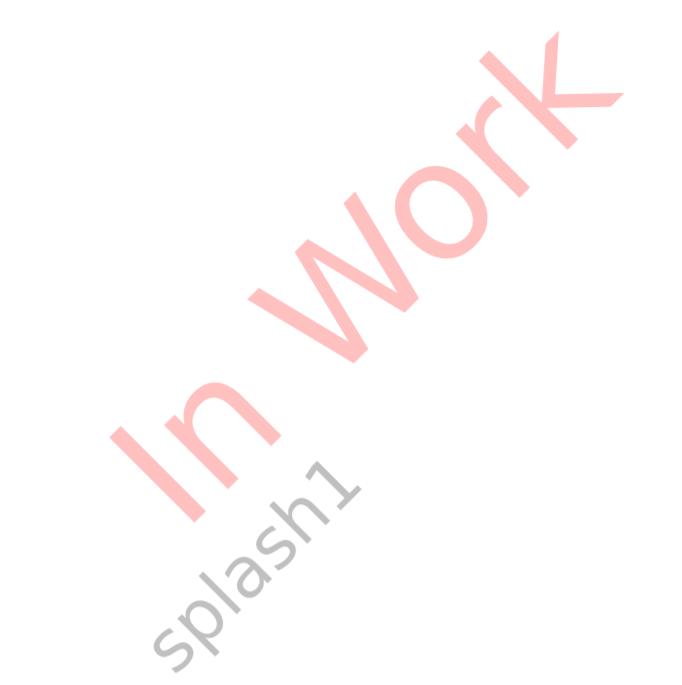

  • Splash: it is located on the center of the document.
  • Splash1: it is located on the center of the document, under splash.

file


  • Footer: it is located on the bottom center of the document.
  • Footer left: it is located on the bottom left side of the document.
  • Footer right: it is located on the bottom right side of the document.

file


NOTE: Template created for all ANSI Paper Sizes. Default sizes for splashfooterheader have been preserved, except for splashsize & splash1size.


Example:

splashsizeah - relates to horizontal splashsize splashsizeav - relates to vertical splashsize



ANSI A

Key Default Value
splashsizeah 22px
splashsizeav 35px
splash1sizeah 15px
splash1sizeav 15px

ANSI B

Key Default Value
splashsizebh 33px
splashsizebv 25px
splash1sizebh 25px
splash1sizebv 15px

ANSI C

Key Default Value
splashsizech 47px
splashsizecv 35px
splash1sizech 35px
splash1sizecv 22px

ANSI D

Key Default Value
splashsizedh 66px
splashsizedv 45px
splash1sizedh 45px
splash1sizedv 25px

ANSI E

Key Default Value
splashsizeeh 160px
splashsizeev 120px
splash1sizeeh 120px
splash1sizeev 80px
